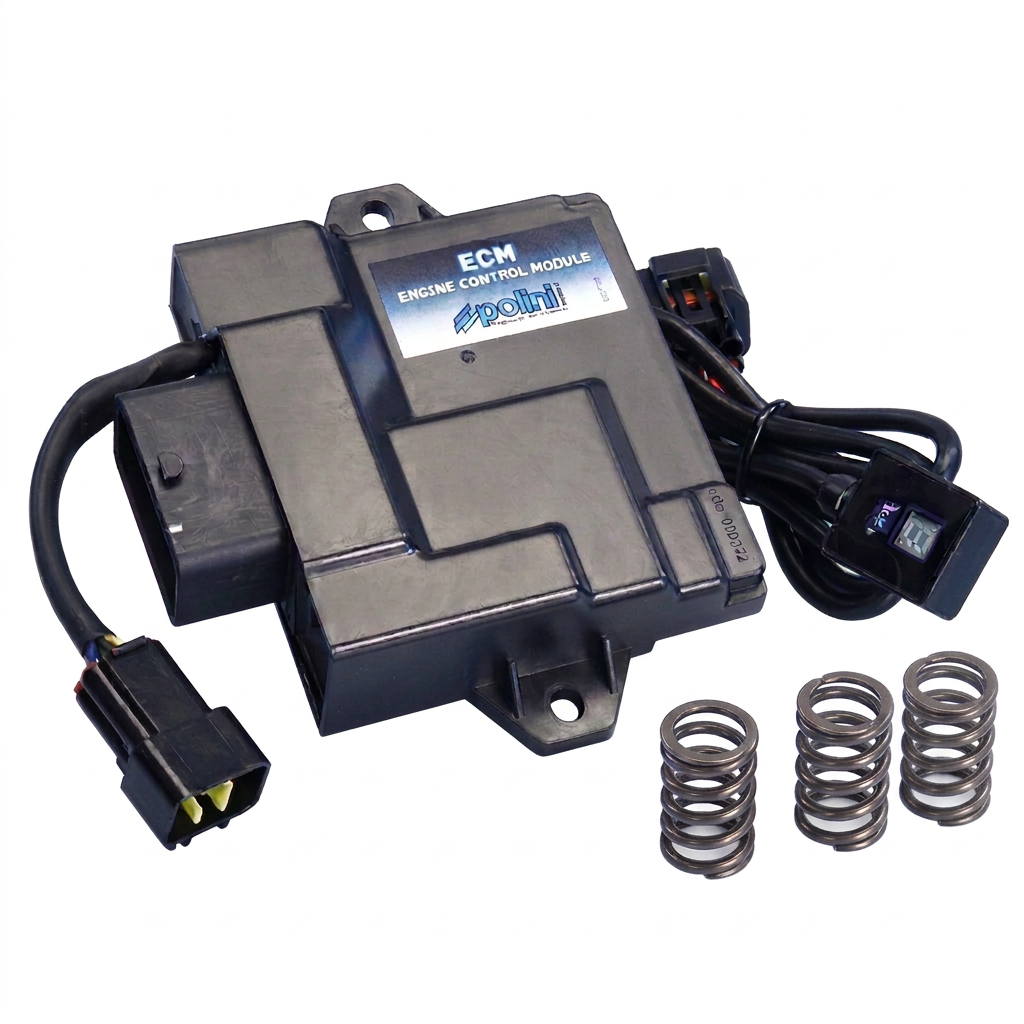

POLINI Aprilia SXR Euro 5 CDI Control Unit
Polini electronic CDI controls the engine, and it includes the connected.sensors, the actuators, the fuel injection, the ignition and the engine auxiliary components. Polini ECM lets the vehicle performance increase using microprocessors of last generation, in synergy with a hardware that has been projected especially for this engine. It’s a plug & play CDI. Very easy and fast to install: it’s enough to disconnect the original one andconnect the Polini ECM. The maps selector is easy to use and it is ready with set-up 4 maps:
- Map 1 (Original Map) – Studied to switch the vehicle to its original configuration, with factory engine, without any increase in engine rpm.This function is not applicable when oversized cylinder and valve springs are installed.
Optional (not mandatory): Polini Hi-Speed variator with 5,8gr rollers and Polini muffler.
- Map 2 – increase of the engine rpm to 10.000 keeping the engine all original.
And with this setting it is not mandatory to install the supplied valve springs, although recommended. Optional not mandatory: Polini Hi-Speed variator with 5,3 gr. rollers, Polini muffler and Polini upgrade air filter sleeve (in the models where installation is foreseen).
- Map 3 – increase of the engine rpm to 10.000 + Polini 78,8 cylinder kit + Polini upgrade gears + springs valves. If you use the original variator, replace the original rollers (6,3 gr.) with the 7 gr. ones. Caution: to use this map it is mandatory to replace all the original valves with those included in the package.
Optional (not mandatory): Polini Hi-Speed variator with 6,3 rollers, Po-lini muffler and Polini upgrade air filter sleeve (for models where installation is foreseen).
- Map 4 specific for Piaggio Zip Euro 5 – increase of the engine rpm to 10.000 + Polini 78,8 cylinder kit + Polini upgrade gears + springs val- ves. If you use the original variator, replace the original rollers (6,3 gr.) with the 6,8 gr. ones. Warning - it is NOT possible to install the air filter sleeve item 223.0131 on Piaggio Zip. Optional not mandatory
Comparison No. 171.0022 (POLINI)
